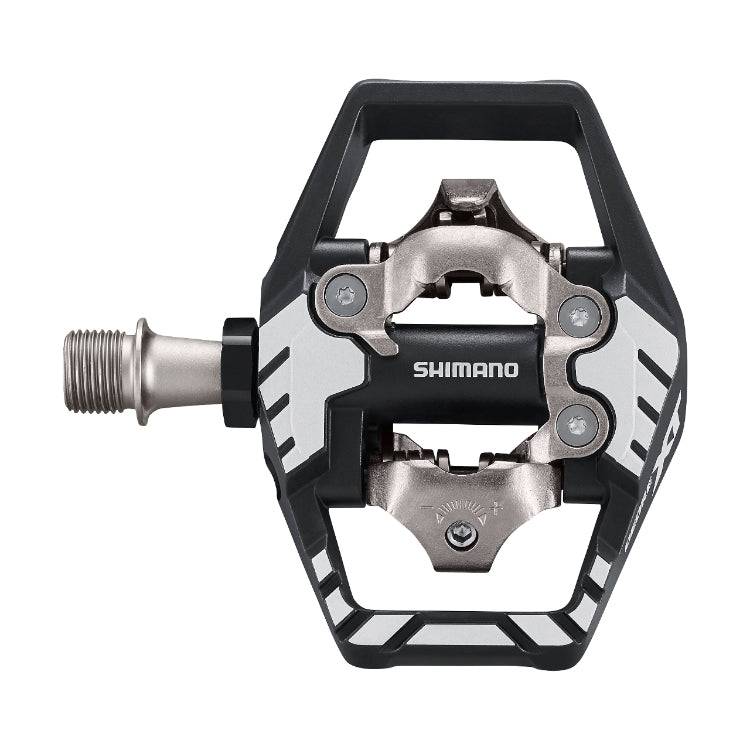

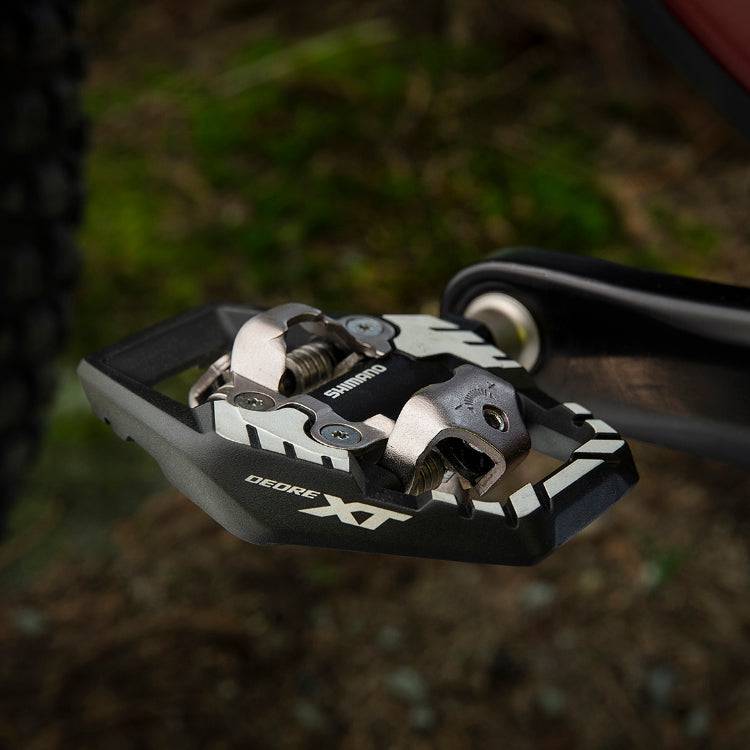

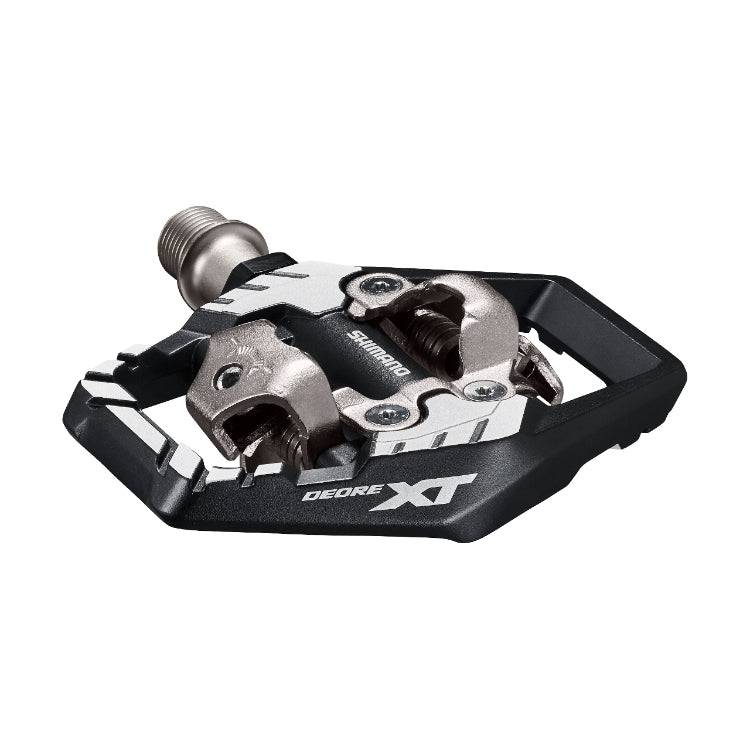

Shimano Deore XT PD-M8120, SPD

The Shimano XT PD-M8120 clipless pedals have been specially developed for use in Trail and Enduro applications. They have a double-sided binding and are of course based on the proven Shimano SPD system. An integrated cage protects the binding from impacts and acts as a guide, making it easier to clip in.

Great for ultra-long events like Brevets (Randonneuring) as this pedal offers MTB pedals freedom and also much more surface area of contact, benefitting for more power and comfort.

Features

• Wide pedal-to-shoe contact
• Lower platform height for pedaling stability
• An integrated cage increases stability and control when not clipped in and protects the binding mechanism against impacts
• Robust retention claws provide smooth engagement and release
• Customize the entry and release tension settings
• Strong, durable chrome-moly spindle with 8 mm hex wrench mount.

Specification

• MODEL NO PD-M8120
• SERIES DEORE XT M8100 Series
• Color Series color
• Average weight 438 ( /pair)
• Remarks 1.0 mm cleat spacer included
• Binding Dual sided
• Cartridge axle ✔
• Cleat included SM-SH51
• Cleat retention adjuster ✔
• Integrated cage ✔
• Optional cleat SM-SH56
• Type Off-Road (SPD)
• Reflector SM-PD60
• Sealed mechanism ✔
• Stack height (mm) 16.2
• Pedal center (mm) 55
