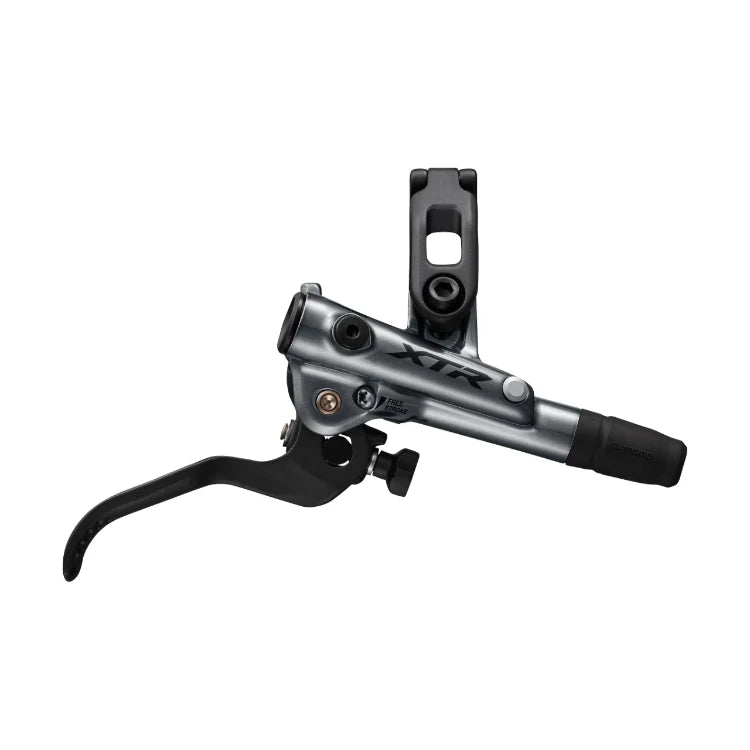

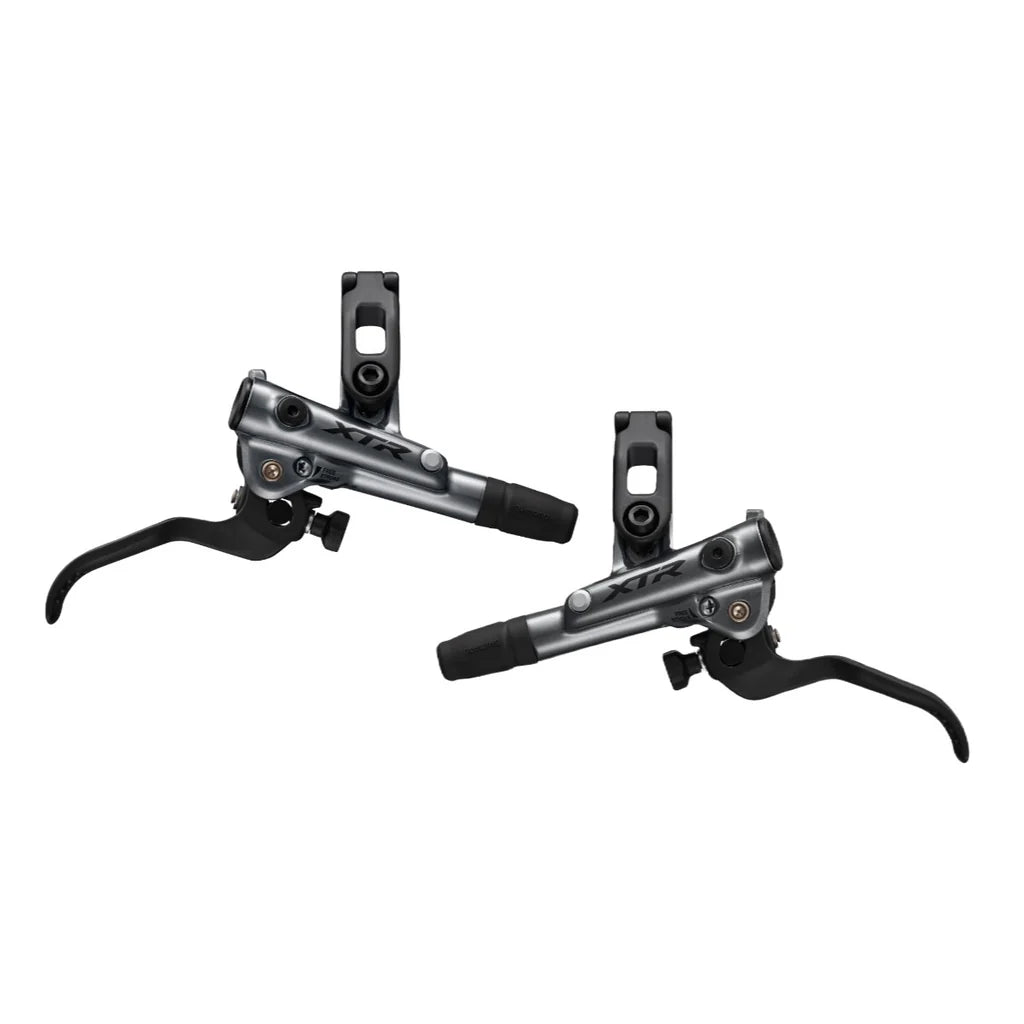

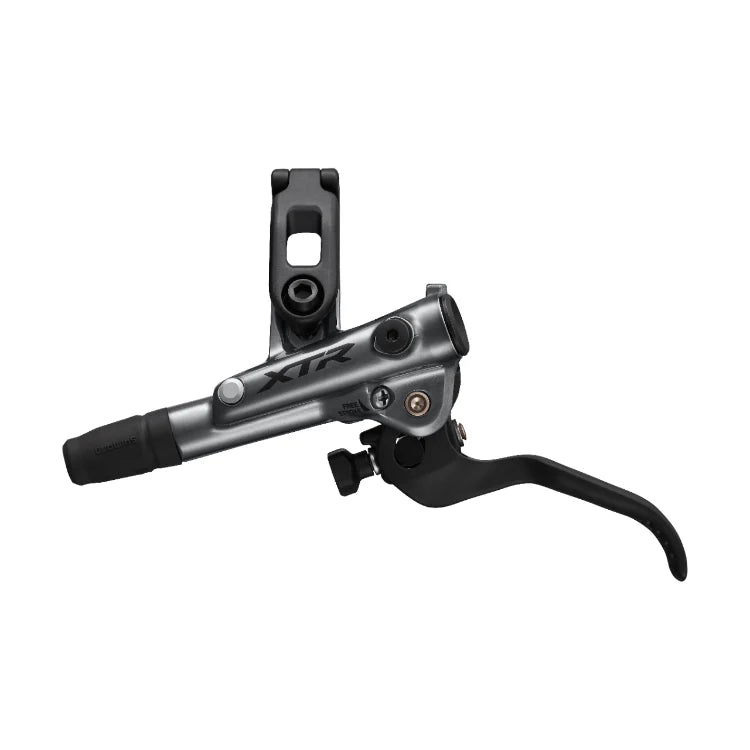

SHIMANO BRAKE LEVER, BL-M9120, XTR, FOR HYDRAULIC DISC BRAKE

Overview

Experience reliable braking power and superior control with Shimano's BL-M9120 XTR Brake Levers. Developed for hydraulic disc brake systems, this lever has an I-SPEC EV clamp band for a secure fit and SERVO WAVE action for greater braking power. Enjoy enhanced stopping power with Shimano's XTR Brake Levers.

Shimano's XTR Trail lever pairs with the new 4-piston Trail calliper offering Rider Tuned stopping power for the ever more capable breed of modern mountain bikes. With tool-free reach adjust and SHIMANO's new I-spec EV standard, the BL-M9120 lever continues to set the standard for mountain bike brakes.

Features

• Seamless operation
• Quicker rebound between actions maintains rider concentration
• Greater flexibility and action-optimized cockpit layout
• Update brake lever shape
• High rigidity
• 8% stiffer than M9000 even under high temp conditions
• Quicker brake engagement with shorter free stroke

Specifications

• Model No BL-M9120
• Series: XTR M9100 Series
• Colour: Series colour
• Average weight: 97
• Brake type: Hydraulic disc brake
• Lever size (finger): 2
• Brake hose (Kit): SM-BH90-SBM
• Hose joint: Straight
• Brake hose colour (kit)|1: Black
• J-Kit spec (for OEM): ✔
• Servo Wave: ✔
• Reach adjust|Toolless: ✔
• Free stroke adjust: ✔
• Compatible shift lever mount|Clamp band: ✔
• Compatible shift lever mount|I-SPEC EV: ✔
• Clamp band|Open clamp: ✔
• Shift lever rotation angle adjust range (I-SPEC EV; deg.): 60
• Recommended brake calliper: BR-M9120
• Oil: Shimano mineral
• Funnel bleeding: ✔
