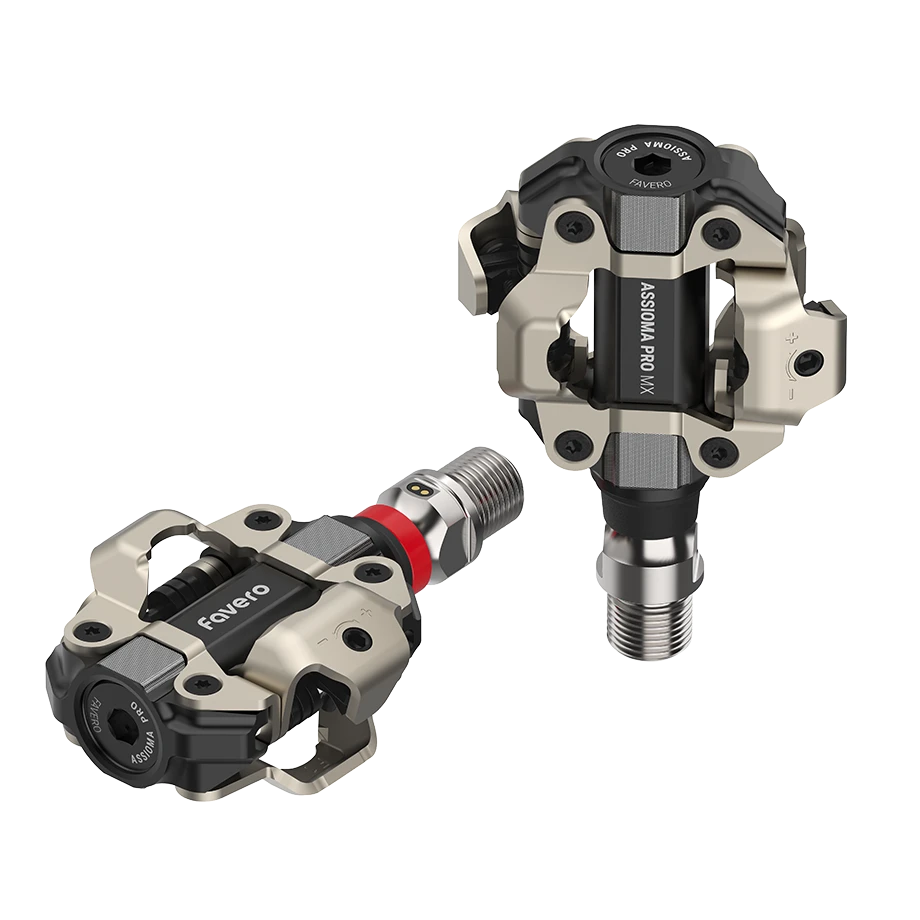

Favero Assioma PRO MX-1

Bike Type: MTB XC, CX, gravel

Specification

Power meter

• Left pedal with power sensor
• Right pedal without power sensor


Clip-in system

• 100% compatible with Shimano® SPD®


Compatible cleats

• Provided cleats (art. 773-00-62)

• Shimano® SM-SH51, SM-SH56 or CL-MT001


Power measurement

• Total power
  (Power produced by the left leg multiplied by two)


Data provided

• Power

• Cadence

• PCO

• Power Phase (PP)

• Rider Position (RP)

• Pedal Smoothness (PS)

• Torque Effectiveness (TE)


Waterproofness

• IP67


Temperature compensation

• Yes – ATC (Active Temperature Compensation)


Pedal body

• Ultralight 6061-T6 aluminum pedal body.

• SPD®-compatible clipless system in chromium molybdenum alloy with a surface hardness up to 800 HV


Modular design

• Interchangeable pedal bodies (MTB/road)


Oval-chainrings compatible
Yes

Warranty
2 yrs

Made in
Italy

Dimensions

Weight

• Weight left pedal with power sensor: 199 g

• Weight left pedal without power sensor: 198 g

• Stack height: 11.2 mm


Battery

• Battery type: Lithium-ion, rechargeable

• Battery life: Up to 160 hours per charge


Communication & Sensor

• Cadence sensor: Included, built-in

• Gyroscope: Included, built-in

• Radio communication: ANT+, Bluetooth (up to 3 BLE connections at the same time)

• Visible data/channel: Via Bluetooth, ANT+/Favero Assioma app

• Power calculation system: IAV (Instantaneous Angular Velocity-based)

• Cycling Dynamics: Available left leg only (PCO, PP, RP)

• Accuracy: ± 1%
