Shimano Bottom Bracket | Deore BB-MT500-PA Hollowtech II 89.5/92mm
Shimano Bottom Bracket | Deore BB-MT500-PA Hollowtech II 89.5/92mm
Couldn't load pickup availability
- 100% genuine, authorised dealer, full manufacturer warranty
- Cash on delivery available
- GST invoice with every order
- Secure checkout: UPI, cards and net banking
Not sure about size or compatibility?

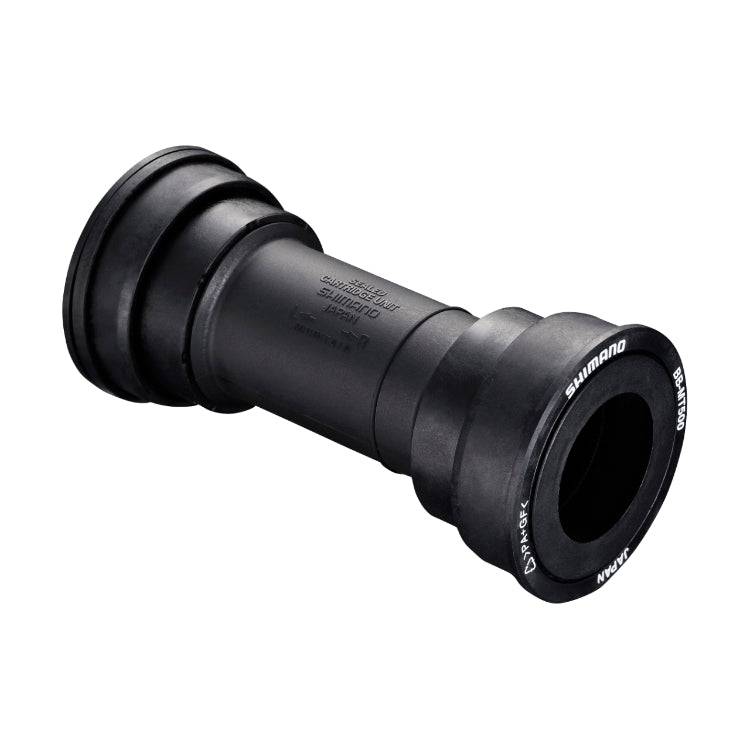

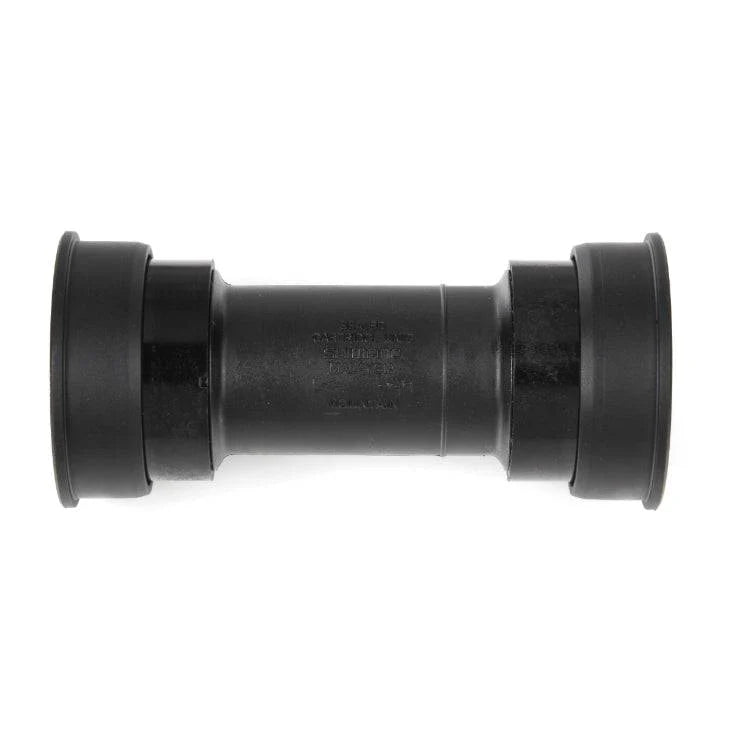

The legacy of Shimano Deore - Robustness and incredibly durable and smoothness in Deore BB-MT500-PA bottom bracket for Press Fit
The Shimano Deore is an all-rounder - known for world tour-ready reliability to being novice budget racer friendly. The Deore BB-MT500-PA is for press fit installation allowing Hollowtech II-compatible cranks with 24 mm axles to be mounted on MTB frames with bottom bracket widths measuring 89 to 92 mm. The shells and sleeve of the durable press-fit bottom bracket are made of plastic.
BB-MT500-PA
SHIMANO DEORE - Bottom Bracket - Press-Fit - HOLLOWTECH II - 68/73 mm shell width
With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.
- Better sealing and rotation, same as SM-BB52
TECHNICAL SPECIFICATIONS
- Application: All Mountain, Touring & Trekking
- Type: Press Fit BB92
- Shell Diameter: 41 mm
- Shell Width: 89.5 mm / 92 mm
- Axle Diameter: 24 mm (Hollowtech II)
- Bearings: Steel
- Bottom Bracket Cup Material: synthetic resin
- Bottom Bracket Centre Tube Material: synthetic resin
COMPATIBILITY
- Deore FC-M617, FC-M6000, FC-T6010, FC-M4100, FC-M5100, FC-M6100, FC-M6120, FC-M6130
- Alivio FC-M4050, FC-M4060
- FC-M627
- FC-MT200, FC-MT210, FC-MT300, FC-MT500, FC-MT510, FC-MT511, FC-MT610
